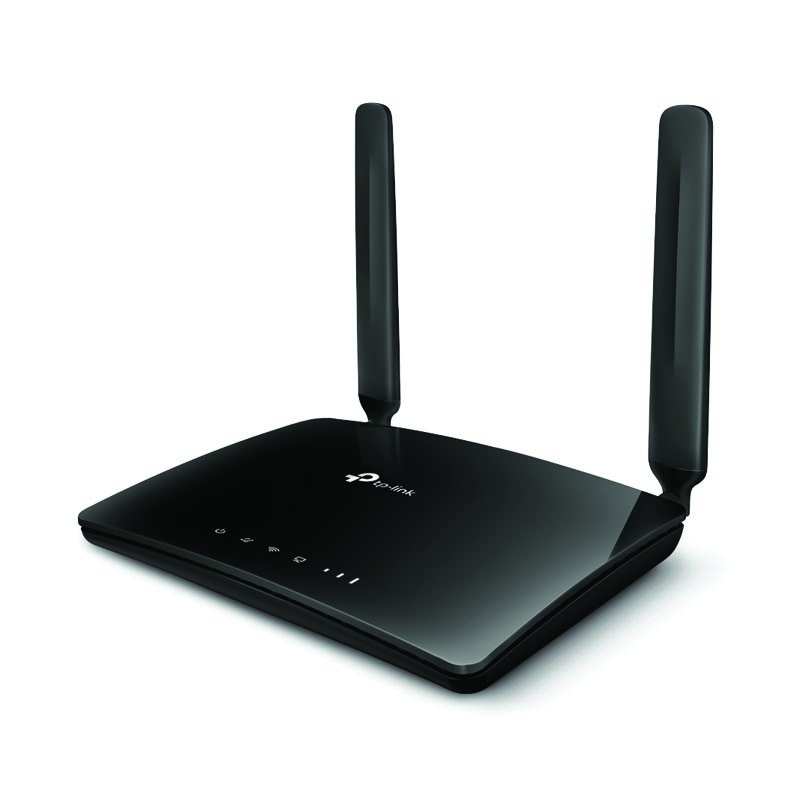

TP-Link – AC750 Wireless Dual Band 4G LTE Router.

Brand Name:	TP-Link
Part Number:	Archer MR200
Product Type:	TP-Link – AC750 Wireless Dual Band 4G LTE Router.
Specification:	Please refer Datasheet on Manufacturer Website
Warranty:	Manufacturer Standard Warranty.

Ask a Question

Description

TP-Link – AC750 Wireless Dual Band 4G LTE Router.

Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Powerful, integrated antennas provide stable wireless connections and better coverage

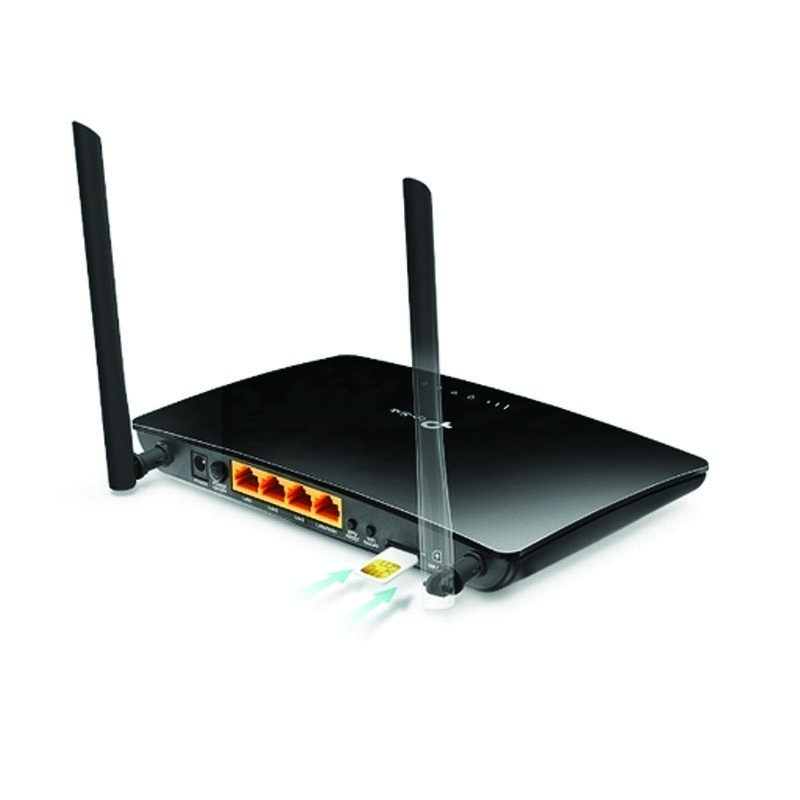

Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

HARDWARE FEATURES
External Power Supply	12V/1A
Interface	3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Micro SIM Card Slot
Button	WPS/RESET Button, Wi-Fi ON/OFF Button
Antenna	2 Detachable External 4G LTE Antennas
Dimensions ( W x D x H )	6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)

WIRELESS FEATURES
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
Transmit Power	< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Reception Sensitivity	5 GHz: 11a 54M: -78 dBm 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Network Type	4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz) TDD-LTE B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
WAN Failover	Yes
